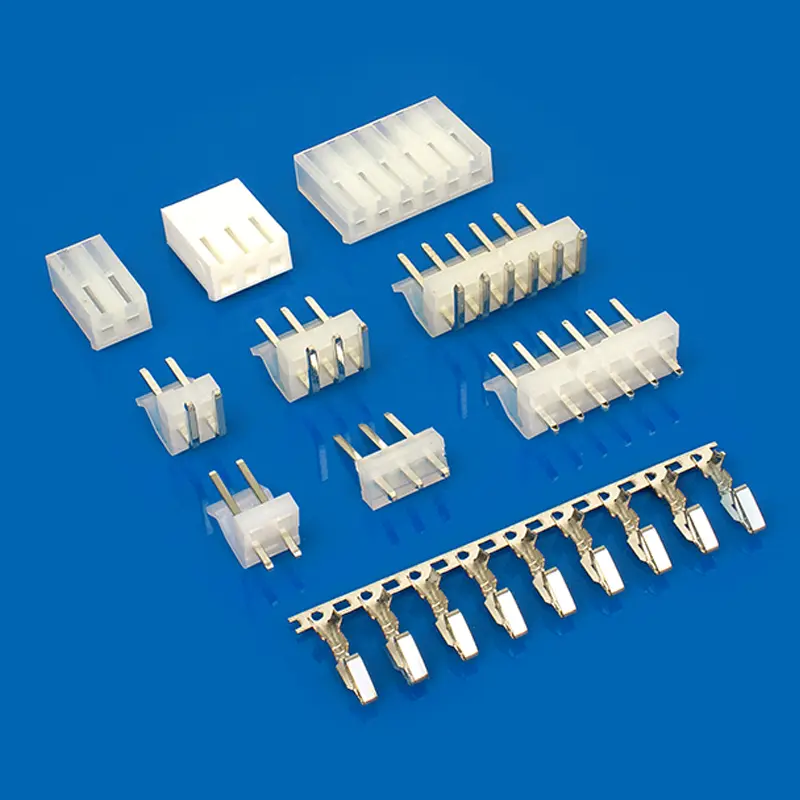

5.08mm Pitch, Vertical Header, Single Row, 4 Circuits, Nylon 66 UL94V-2, Brass Tin, Transparent, Bag
A5081-WVB04
| Product category: A5081 SERIES | Picth:5.08mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 5 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 24-18 | UL: E364711 |
| Keywords:4 pin wafer connector,pcb board connector,pcb wire connector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 5.08 mm Connector System: Wire-to-Board Product category: A5081-WVB04 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-2
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 4
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 5 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
