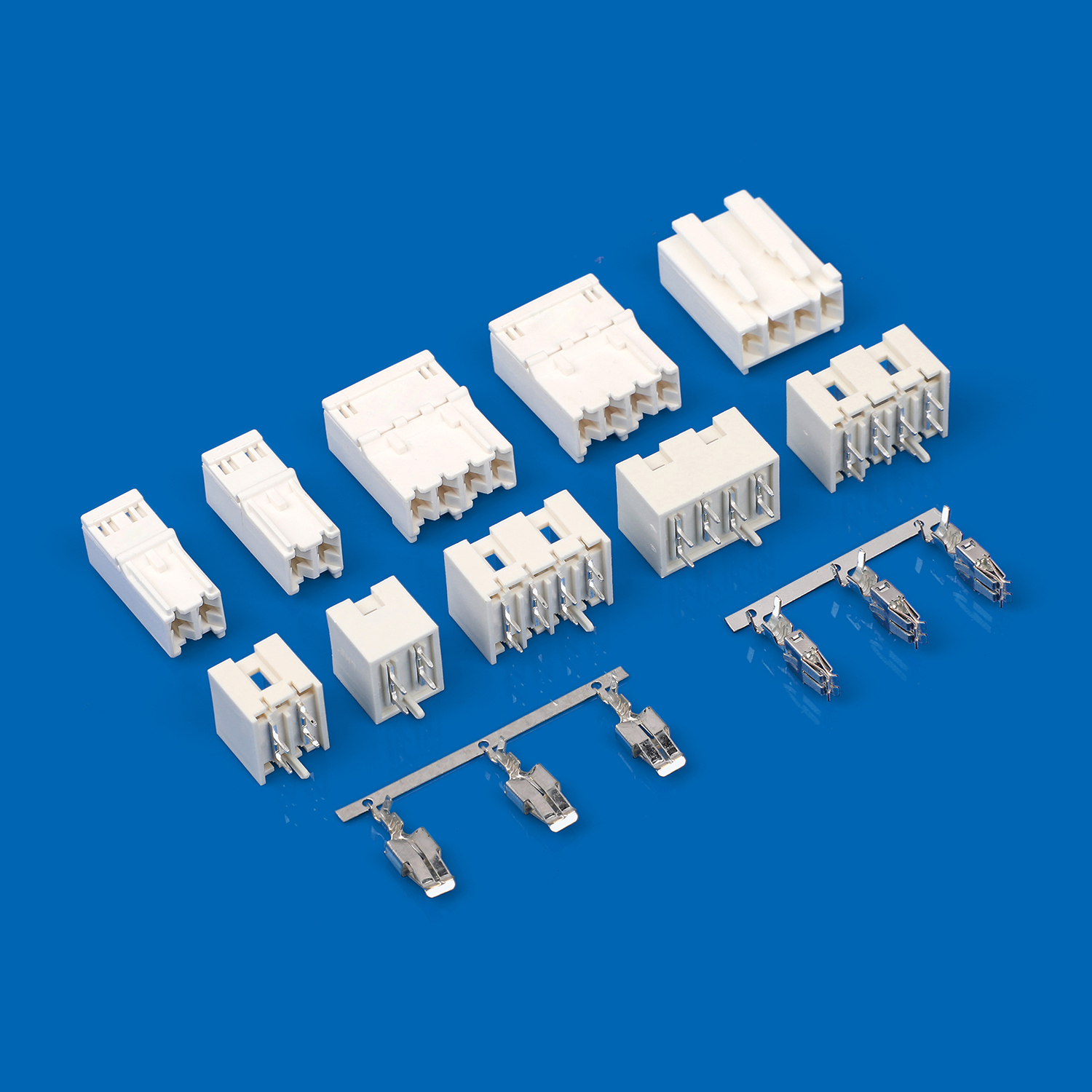

| Product category: A5001 SERIES | Picth:5.00mm |
| Temperature: -40℃~120℃ | Material: PBT UL94 V0 |
| Current(Max)(A):
Tin plated:16A,Sliver plated:20A |
Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): | UL: E364711 |
| Keywords: PCB Mount Header,RAST 5 IDC Connectors,wire to board connector | |
| Product Type Features | Connector Product Type: Header
Centerline (Pitch): 5.0 mm Connector System: Wire-to-Board Product category: A5001-DWRX06 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT UL94V-0
Color: White |
| Configuration Features | Number of Positions: 6
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): Tin plated:16A,Sliver plated:20A |
| Usage Conditions | Operating Temperature Range: -40℃~120℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
