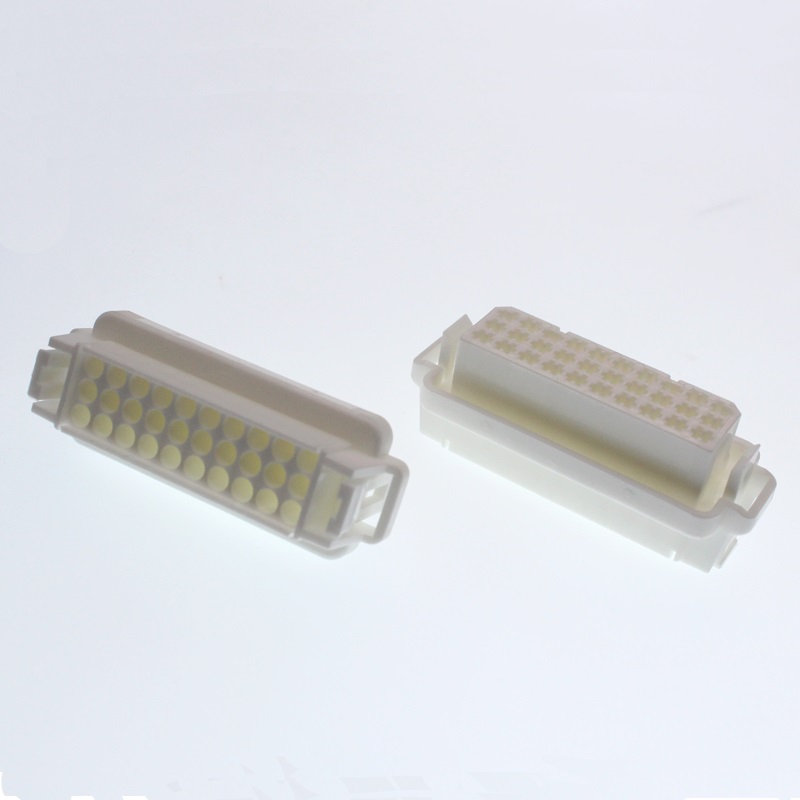

4.2mm Pitch, Housing, Three Row, 30 Circuits, Nylon 66 UL94V-0, White, Bag
A4203-H30
| Product category: A4203SERIES | Picth:4.2mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 8 | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 20-18 | UL: E364711 |
| Keywords: wire to board,wire connector,30 pin plastic connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 4.2 mm Connector System: Wire-to-Board Product category: A4203-H30 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 30
Number of Rows: 3 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 8 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
