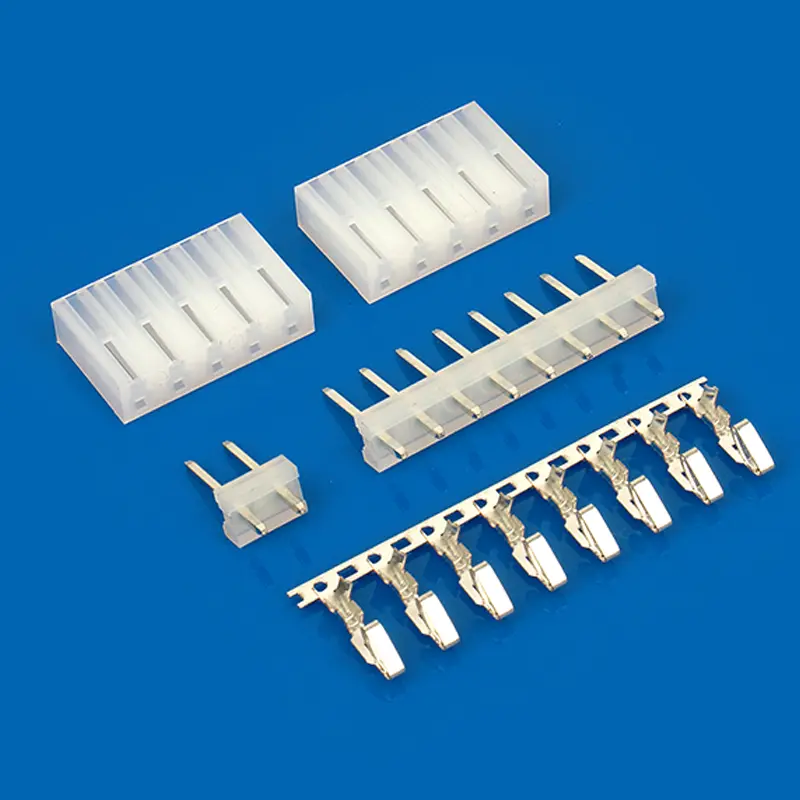

3.96mm Pitch, Housing, Single Row, 11 Circuits, Nylon 66 UL94V-0, White, Bag
A3961-H2-11
| Product category: A3961 SERIES | Picth:3.96mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 7 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 24-18 | UL: E364711 |
| Keywords: electrical plug housing,plug connectors,nylon connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 3.96 mm Connector System: Wire-to-Board Product category: A3961-H2-11 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 11
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 7 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
