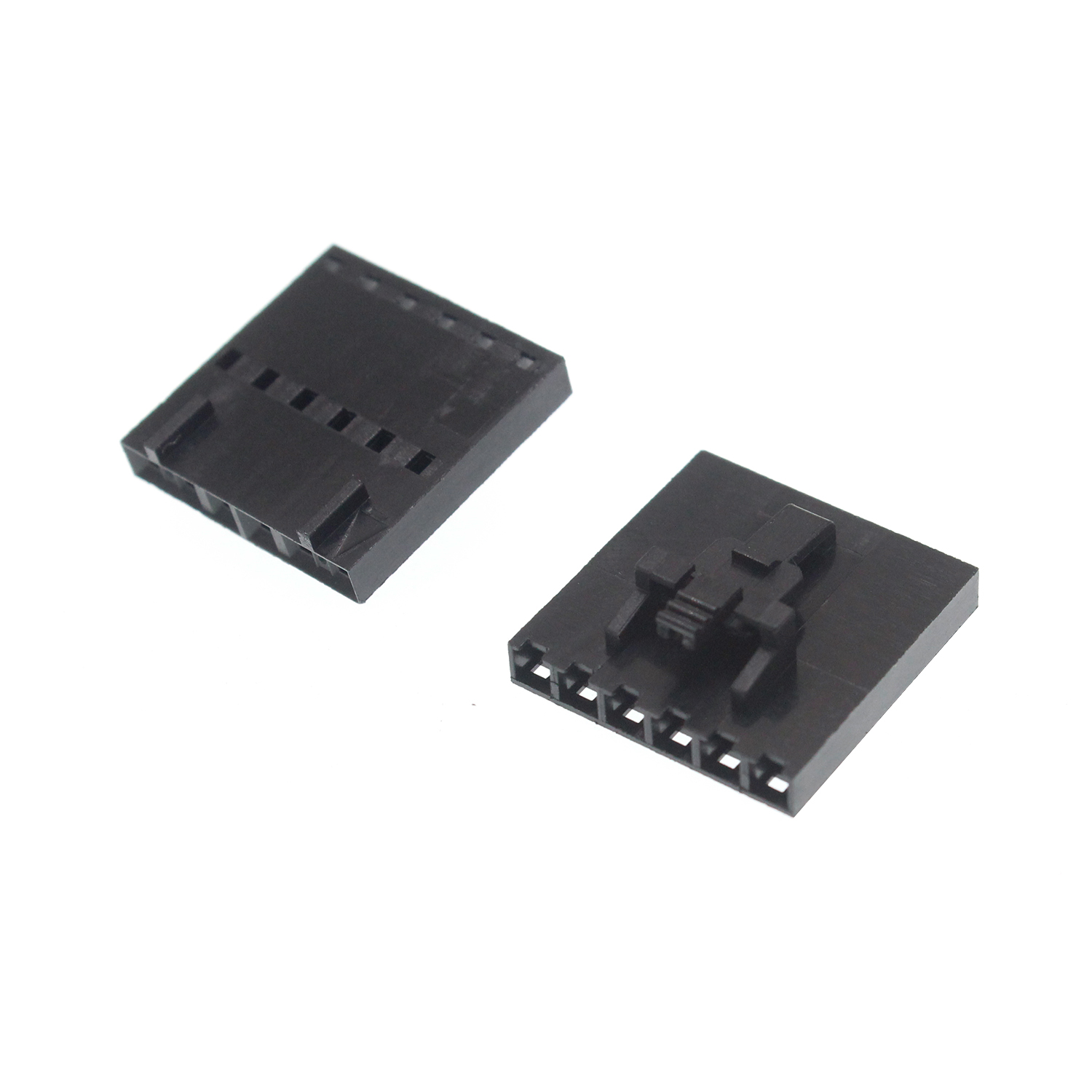

2.54mm Pitch, Housing, Single Row, 6 Circuits, PBT UL94V-0, Black, Bag
A2545-H06
| Product category: A2545 SERIES | Picth:2.54mm |
| Temperature: -25℃~85℃ | Material: PBT UL94 V0 |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 28-22 | UL: E364711 |
| Keywords: electrical plug housing,6 pin housing connector,connector 6 pin | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 2.54 mm Connector System: Wire-to-Board Product category: A2545-H06 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT UL94V-0
Color: Black |
| Configuration Features | Number of Positions: 6
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25℃~85℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
