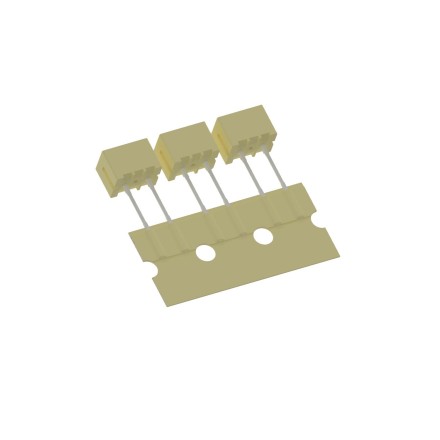

2.5mm Pitch, Vertical Header, Single Row, 3 Circuits, Nylon 66 UL94V-0, Brass Tin, White, Reel
A25018-WVG03-N2
| Product category: A25018 SERIES | Picth:2.5mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): / | Voltage – Maximum(VAC/DC): / |
| Wire rang(AWG): / | UL: E364711 |
| Keywords: 3 pin electrical connector,male header connector,male connector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 2.5 mm Connector System: Wire-to-Board Product category: A25018-WVG03-N2 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 3
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): /
Current – Maximum per Contact(Max)(A): / |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel/Carton |
