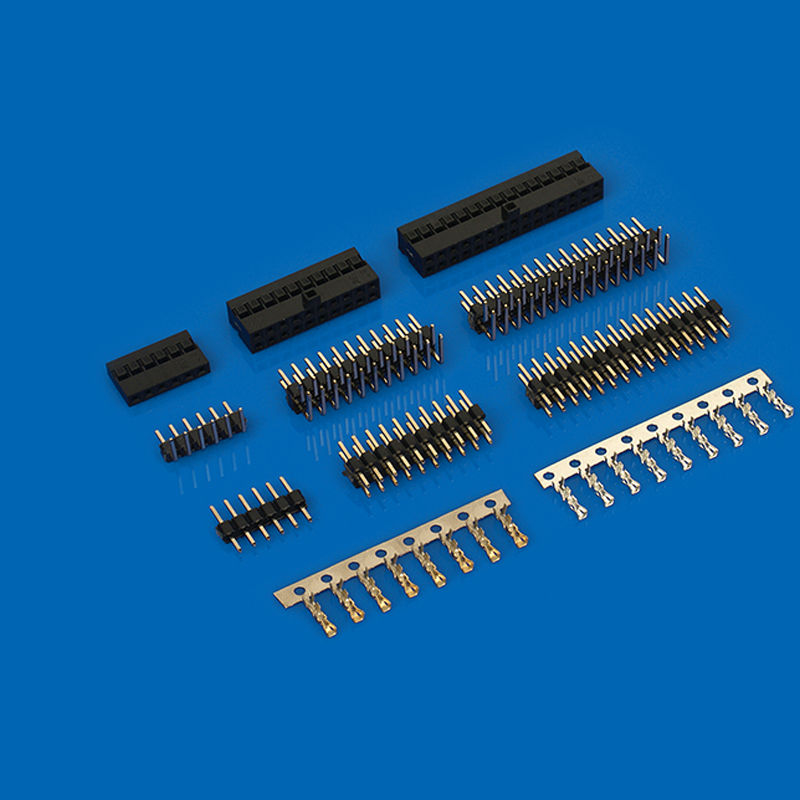

2.0mm Pitch, Housing, Singular Row, 8 Circuits, Nylon 66 UL94V-0, Black, Bag
A2004-HB08
| Product category: A2004 SERIES | Picth:2.0mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 2 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 30-26 | UL: E364711 |
| Keywords: 8 pole pa66 connector,pa66 wire connector,2.54mm cable connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 2.0 mm Connector System: Wire-to-Board Product category: A2004-HB08 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 8
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 2 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
