Products

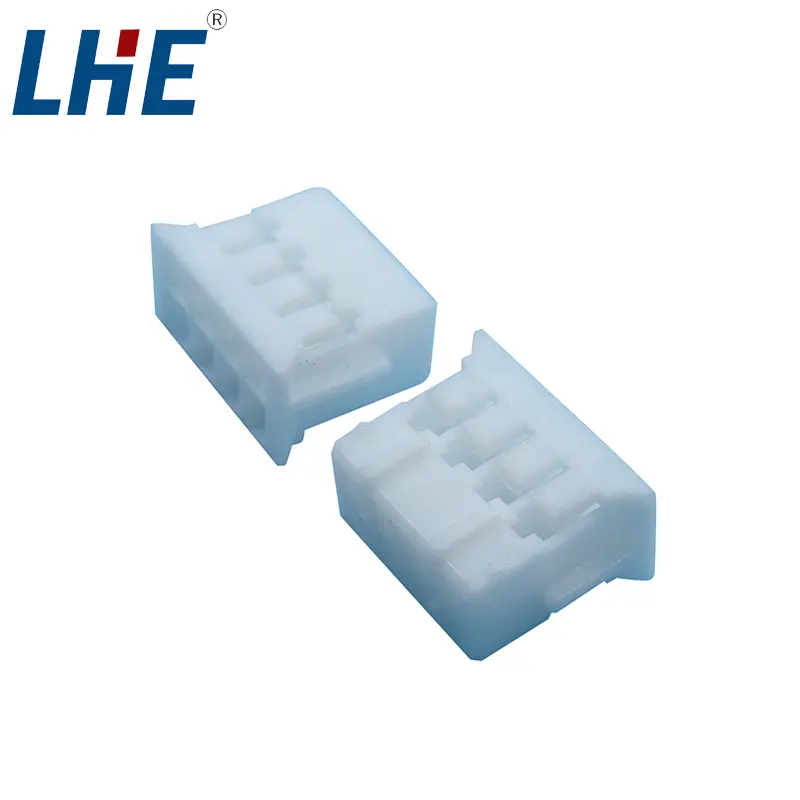

A2002(PHD) Connector 2.0mm Pitch

A2002(PHD) Connector 2.0mm Pitch is replacement of JST PHD connectors. 2.0mm pitch.It’s widely used in wire to board connectors.Fully shrouded header, crimp style.

Type: wire to board
Application: Power
Gender: Male & Female
Product Name: A2002 PHD Connector
Pitch: 2.0mm
Material: PA66 and Brass Tin
Poles: 4-40P
Row: Single Row & Double Row
Color: White
Main Products:connector

Packaging & Delivery

Packaging Details

Housing in plastic bag and Terminals in double paper board, then in cartons, 50CM * 40CM * 50CM.(negotiable)

Port

Shanghai/Ningbo

Lead Time

Quantity(Pieces) 1 – 100000 >100000
Est. Time(days) 3 To be negotiated

Specification

Poles:4 to 40PIN

Current rating:3.0A AC,DC

Voltage rating:250V AC,DC

Temperature range:-25°C to +85°C

Contact resistance:≤20mΩ

Insulation resistance:≥1000mΩ

Withstand voltage:800V AC/minute

Applicable wire:AWG #28 to #22

Applicable PC board thickness:0.8 to 1.6mm

Specification
Series A2002 Series
Contact Pitch 2.0mm
No.of Contacts 02X2 to 20X2 positions
Current 3A (AWG22 to 28)
Compatible Cross JST PHD Connector Series
