Products

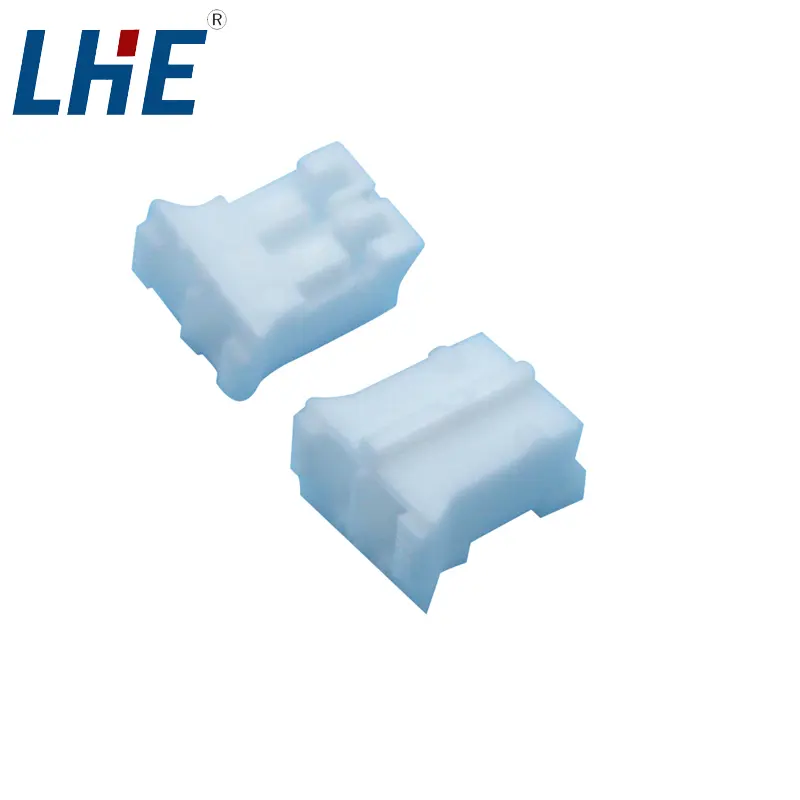

Product Type Features Connector Product Type : Housing
Connector & Housing Type : Receptacle
Connector System : Wire-to-Board
Sealable : No
Connector & Contact Terminates To : Wire & Cable
Configuration Features Number of Positions : 2
Number of Rows : 1
Electrical Characteristics Operating Voltage (VAC): 100
Insulation Resistance (MΩ): 1000
Dielectric Withstanding Voltage (Max) (VAC): 1000
Body Features Primary Product Color : Natural
Contact Features Contact Base Material : Copper Alloy
Contact Type : Socket
Contact Layout : Inline
Contact Current Rating (Max) (A):2
Termination Features Termination Method to Wire & Cable : Crimp
Mechanical Attachment Mating Retention Type : Detent
PCB Mount Retention : Without
Panel Mount Feature : Without
Strain Relief : Without
Mating Retention : With
Connector Mounting Type : Cable Mount (Free-Hanging)
Housing Features Housing Material : Thermoplastic
Centerline (Pitch) : 2 mm [ .079 in ]
Housing Entry Configuration : Both Ends Closed
Dimensions Wire Size (mm²): 0.05-0.22
Wire Size (AWG): 30-24
Compatible Insulation Diameter Range : 0.9-1.5 mm [ .035 – .059 in ]
Usage Conditions Operating Temperature Range : -25 – 105 °C [ -13 – 221 °F ]
Operation/Application Circuit Application : Power & Signal
Industry Standards UL Flammability Rating : UL 94V-0
Glow Wire Rating : Standard Part – Not Glow Wire
Packaging Features Packaging Method : Bag/Carton
Packaging Quantity : 1000

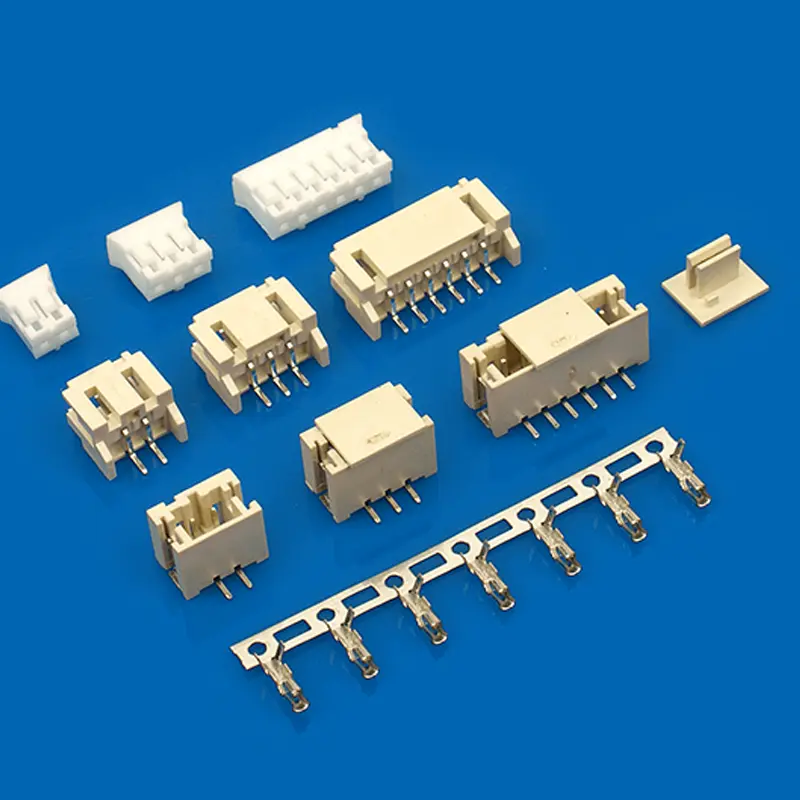

Description PART NUMBER
Vertical, Single Row, Through Hole Headers A2001-WV/A2001-DWV/A2001-WVB
Right-Angle, Single Row, Through Hole Headers A2001-WR/A2001-WRB/A2001-WRC
Right-Angle, Single Row, Surface Mount Headers A2001-SR
Vertical, Single Row, Surface Mount Headers A2001-SV
