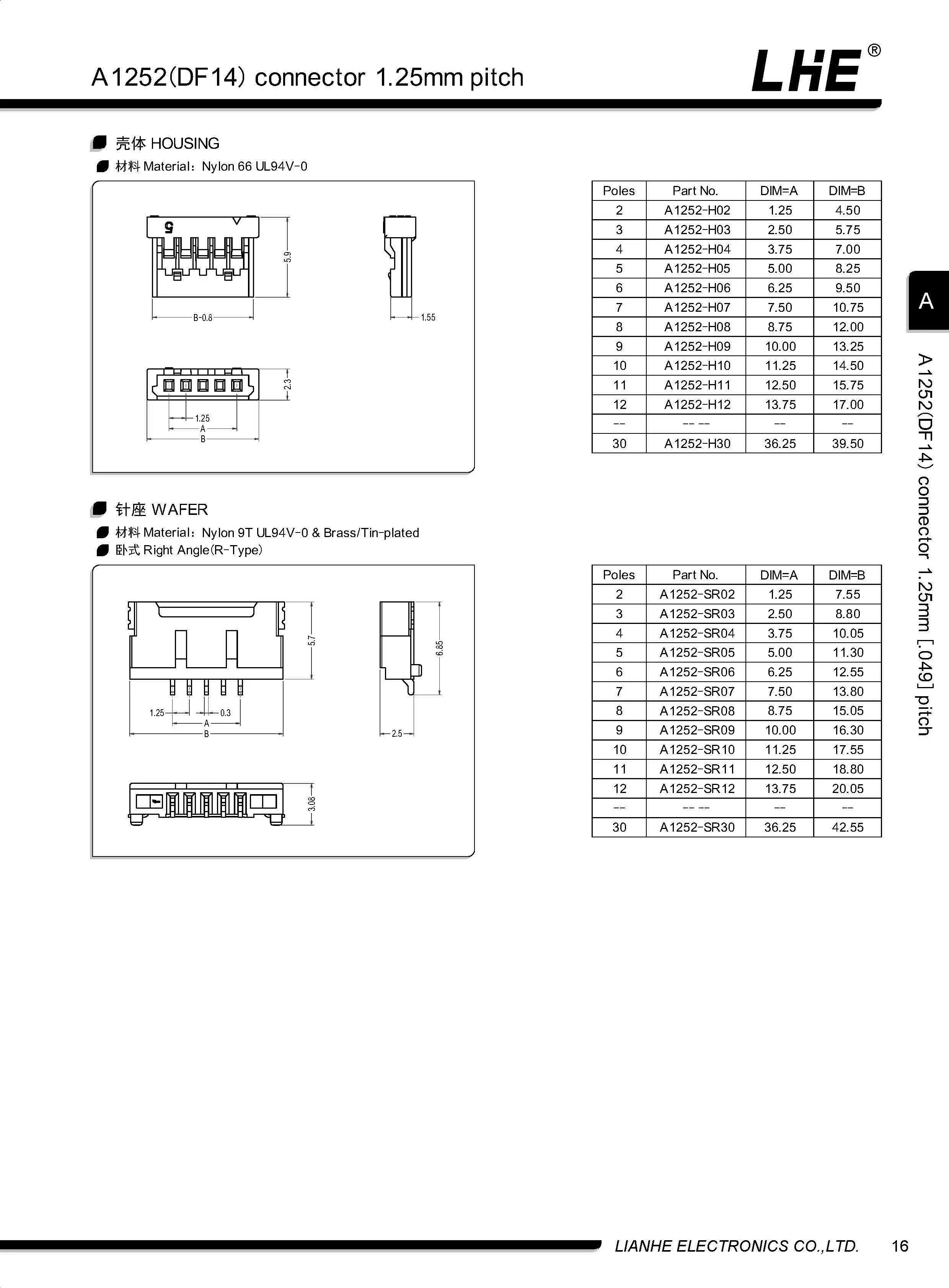

A1252(DF14) Connector 1.25mm Pitch
A1252 series are replacement of HRS DF14 connectors. 1.25mm pitch.It’s widely use wire to board connectors.Fully shrouded header, crimp style.
A1252 series are replacement of HRS DF14 connectors. 1.25mm pitch.It’s widely use wire to board connectors.Fully shrouded header, crimp style.
Specification | |
Series | A1252 Series |
Contact Pitch | 1.25mm |
No.of Contacts | 2 to 30 positions |
Current | 1A (AWG28 to 32) |
Compatible | Cross HRS DF14 Connector Series |
