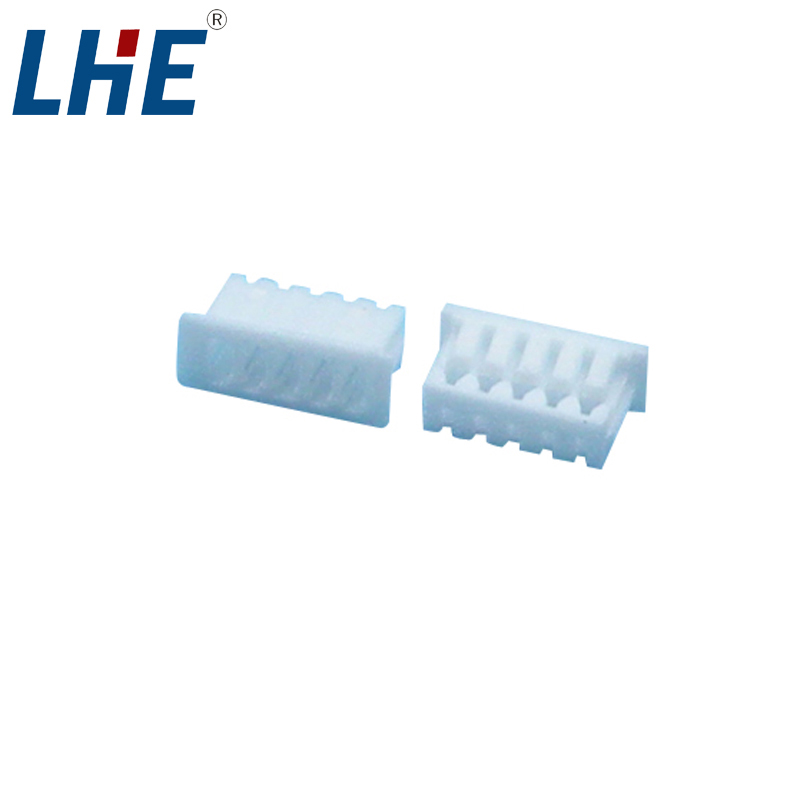

A1251(51021) Connector 1.25mm Pitch

A1251(51021) Connector 1.25mm Pitch is replacement of MOLEX 51021 connectors. 1.25mm pitch.It’s widely used in wire to board connectors.Fully shrouded header, crimp style.

Type: RGB
Application: AUTOMOTIVE
Gender: Male
Product Name: A1251 1.25 Connector
Pitch: 1.25mm
Material: PA66 and Brass Tin
Poles: 2-16P
Row: Single Row
Color: White

Packaging & Delivery

Selling Units

Single item

Single package size

50X50X40 cm

Single gross weight

25.0 kg

Lead Time

Quantity(Piece) 1 – 100000 >100000

Est. Time(days) 3 To be negotiated

Specification

Poles:2 to 16PIN

Current rating:1.0A AC,DC(AWG#32 0.8A)

Voltage rating:125V AC,DC

Temperature range:-25°C to +85°C

Contact resistance:≤20mΩ

Insulation resistance:≥100mΩ

Withstand voltage:500V AC/minute

Applicable wire:AWG #32 to #28

Applicable PC board thickness:0.8mm


Specification
Series A1251 Series
Contact Pitch 1.25mm
No.of Contacts 2 to 25 positions
Current 1A (AWG28 to 32)
Compatible Cross MOLEX 51021 Connector Series
