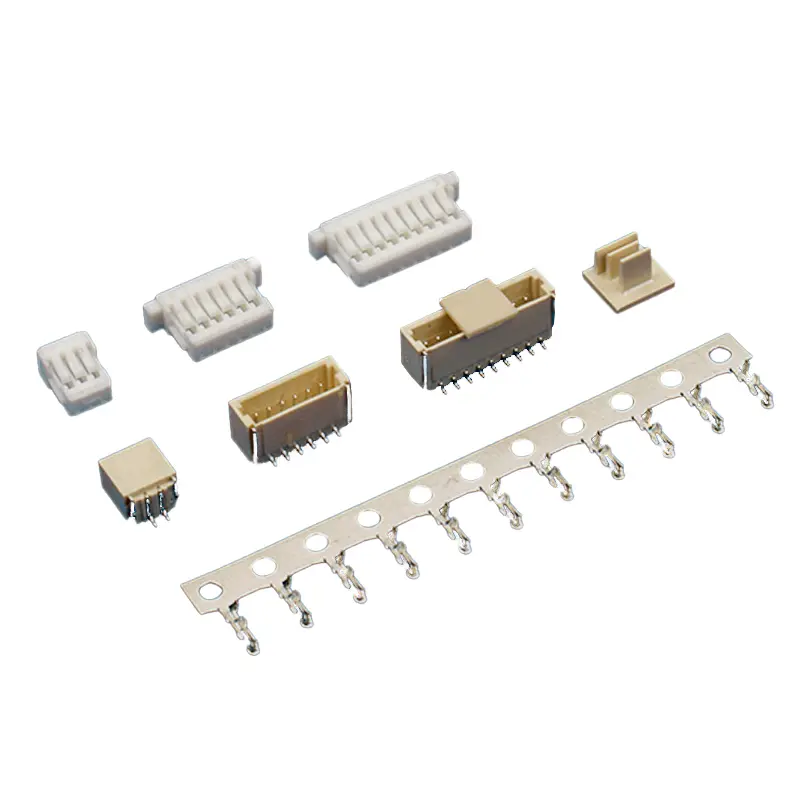

1.00mm Pitch, Right-Angle Header, Surface Mount, Single Row, 12 Circuits, LCP, Brass Tin, Beige, Reel
A1001-SRB12
| Product category: A1001 SERIES | Picth:1.0mm |
| Temperature: -25℃~105℃ | Material: LCP, Phosphor Bronze Tin |
| Current(Max)(A): 1 | Voltage – Maximum(VAC/DC): 50 |
| Wire rang(AWG): 32-28 | UL: E364711 |
| Keywords:right angle pin header connectors,smt electrical products,wire to board conector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 1.0 mm Connector System: Wire-to-Board Product category: A1001-SRB12 |
| Specifications And Characteristics | Material – Resin and Flammability: LCP UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 12
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 50
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel/Carton |
