| Product category: A2502 SERIES | Picth:2.5mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 30-22 | UL: E364711 |
| Keywords: 5 Pin Power Connector | |
2.5mm Pitch, Vertical Header, Single Row, 5 Circuits, Nylon 66 UL94V-0, Brass Tin, White, Bag

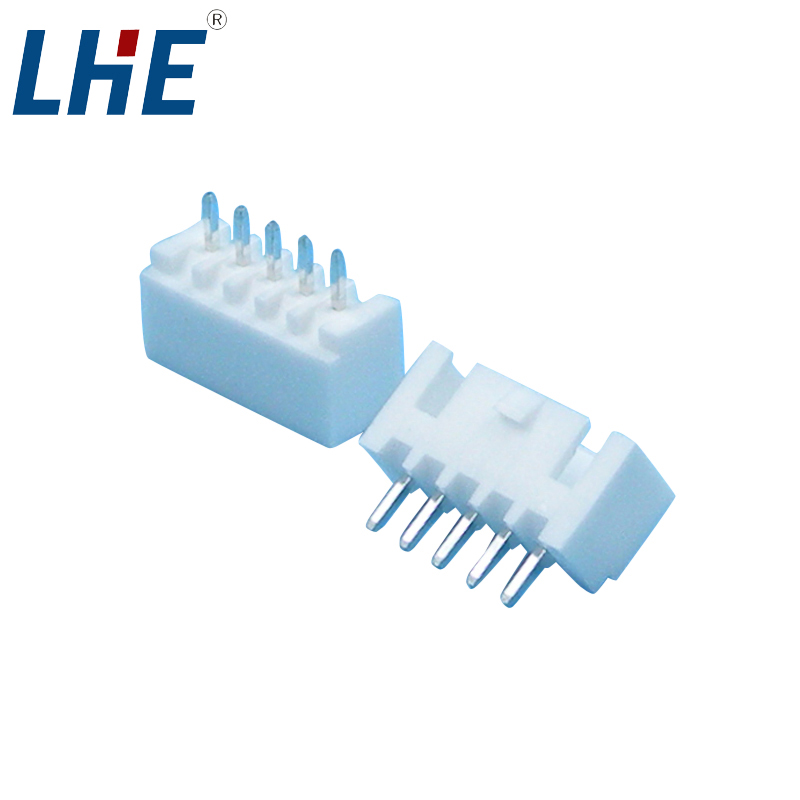

A2502-WV05
| Product Type Features | Product Name: SMW250 Pa66 Electrical 5 Pin Power Connector
Connector Product Type: Wafer/Header Centerline (Pitch): 2.5 mm Connector System: Wire-to-Board Product category: A2502-WV05 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 5
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 2000 |
