| Product category: A4202 SERIES | Picth:4.2mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 8.5 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 24-20 | UL: E364711 |
| Keywords: 24 Pin Connectors,connector molex,wiring connector | |

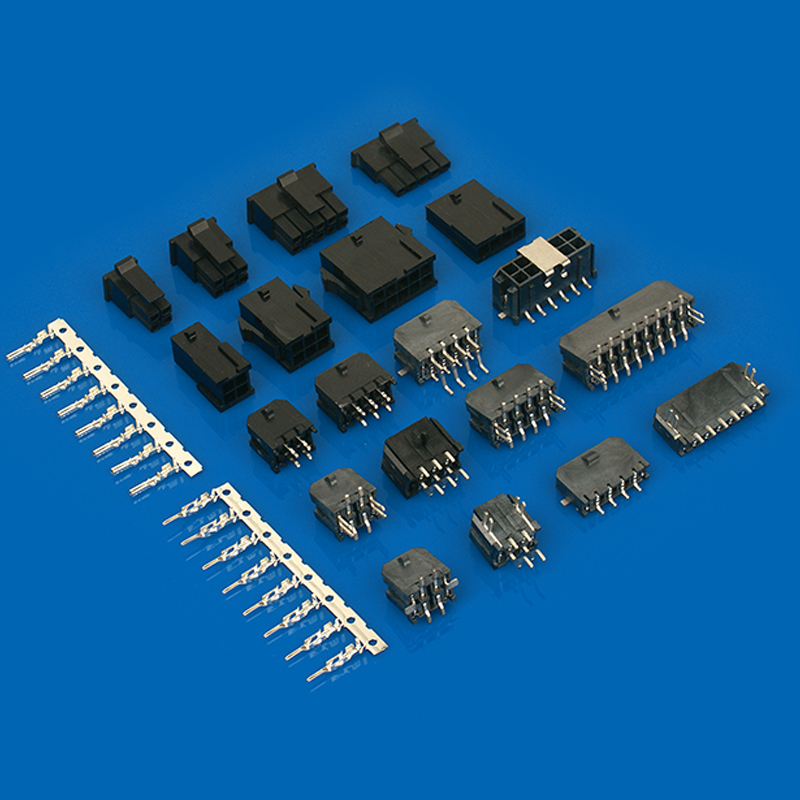

3.0mm Pitch, Housing, Double Row, 24 Circuits, Nylon 66 UL94V-0, Black, Bag
C3002-HB12X2
| Product Type Features | Product Name: Molex 43020-2401 Wire To Wire 24 Pin Connectors
Connector Product Type: Houing Centerline (Pitch): 3.0 mm Connector System: Wire-to-Wire Product category: C3002-HB12X2 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: Black |
| Configuration Features | Number of Positions: 24
Number of Rows: 2 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 8.5 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 250 |
