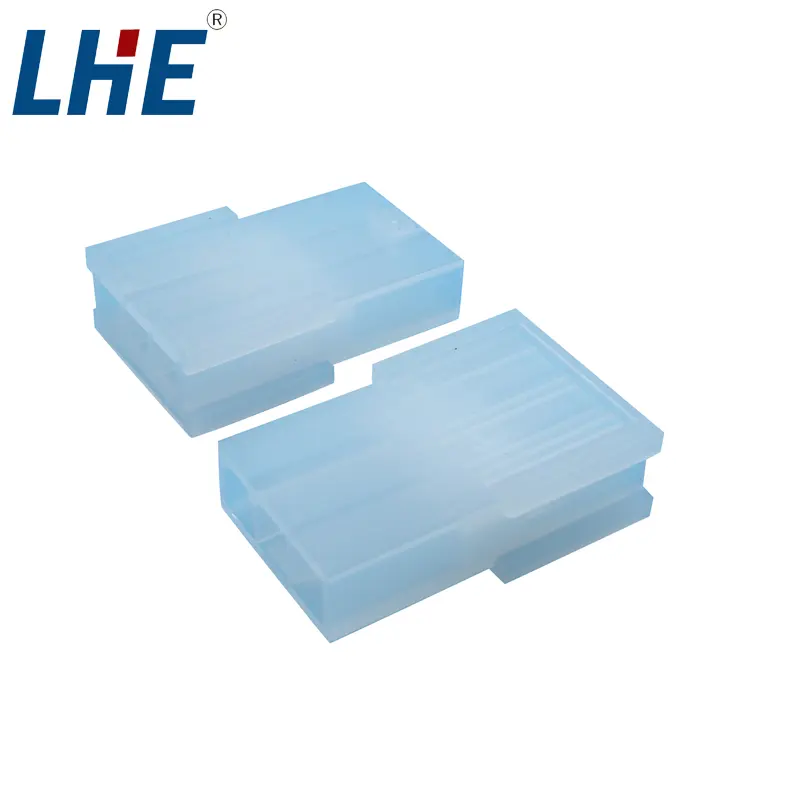

4.2mm Pitch, Housing, Single Row, 3 Circuits, Nylon 66 UL94V-0, Transparent, Bag
C4202-HB03
| Product category: C4202 SERIES | Picth:4.2mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 9 | Voltage – Maximum(VAC/DC): 600 |
| Wire rang(AWG): 28-16 | UL: E364711 |
| Keywords: 4.2mm connector,male plug connector,electrical male plugs | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 4.2 mm Connector System: Wire-to-Wire Product category: C4202-HB03 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 3
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 600
Current – Maximum per Contact(Max)(A): 9 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
