Three types of connectors



The general connectors can be divided into three types, such as wire-to-board, board-to-board and wire-to-wire. Let’s take a look at their differences and applications.



1.Wire-to-board Connectors



It’s a connector that connected wires and circuit board, which main function is to transmit power and signal. The wire-to-board connector is arguably the ancestor of all connectors. Depending on the use and requirements, there are numerous types of line-to-board. But in the information industry, it is mostly based on the distance of the pin as well the transmission of current and voltage to distinguish.

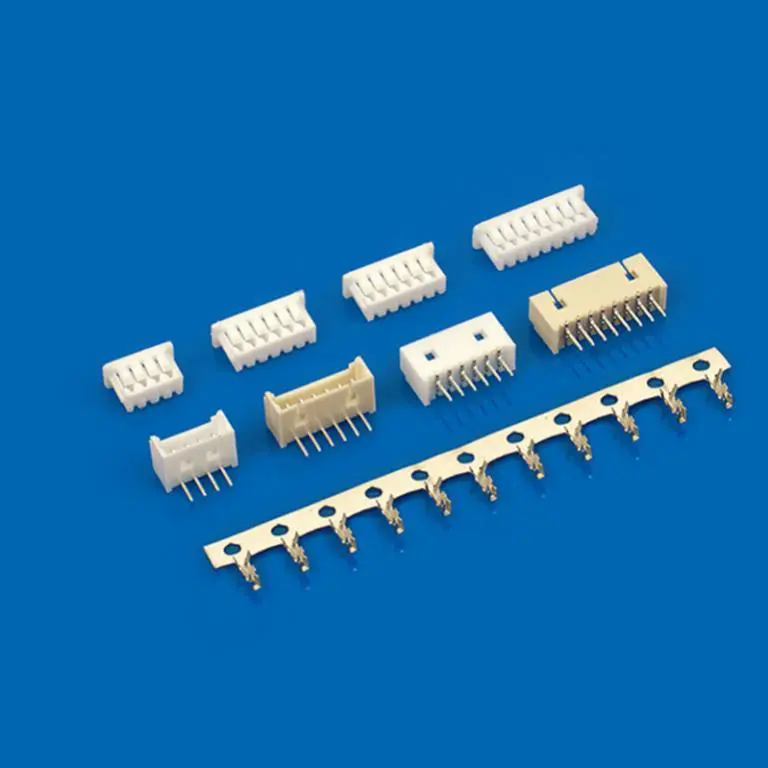

Wire-to-board Connectors



The main applications of wire-to-board connectors include commercial electronic equipment, household appliances and other general industrial and commercial areas using auxiliary circuits.

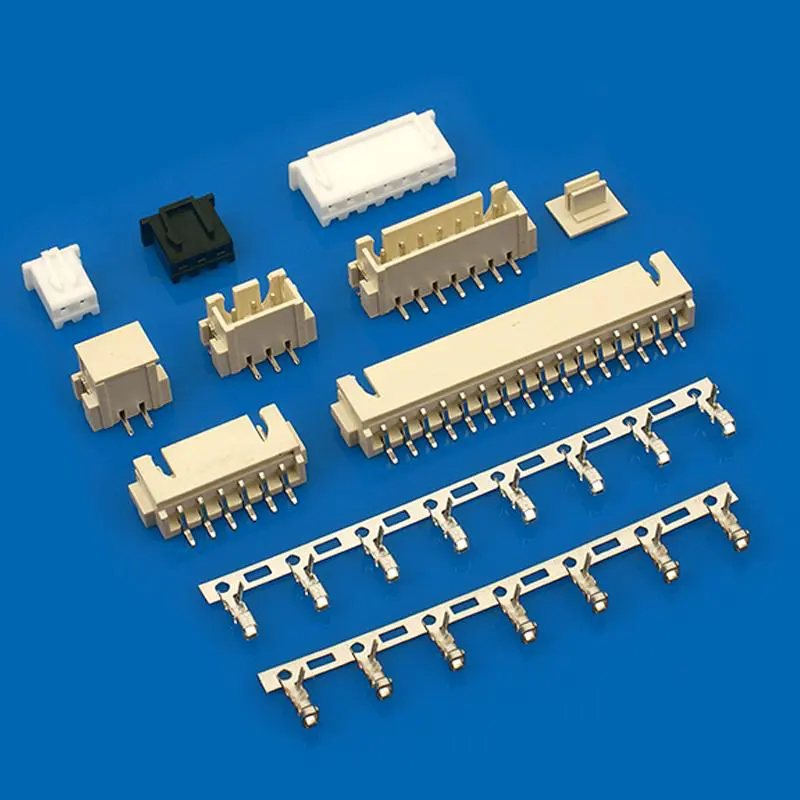

Board-to-board Connectors



2.Board-to-board Connectors



At present the board-to-board connector has the strongest transmission capacity among all connector products. The main spacing of the board to board connector is 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00m and 1.27mm.



The main spacing of the board to board connector



Board-to-board connectors are mainly used in electrical power system, communication network, financial manufacturing, industrial automation, medical facility, office equipment, intelligent household electrical appliance, military industry manufacture and other industries.



Board-to-board connectors are mainly used in electrical power system



3.Wireto wire Connectors



It includes two forms of wire-to-cable or cable-to-cable, the defining feature is two single-thread individual or a permanent connection between the corresponding leads of the two cables. This type of permanent connection is common in fixed-connection of wire-to wire connections and IDC connections.



used in automotive, communications, consumer electronics



Wire-to-wire connectors are mainly used in automotive, communications, consumer electronics, data processing, industrial machinery and other fields.
